RIDGER TY – RG 4

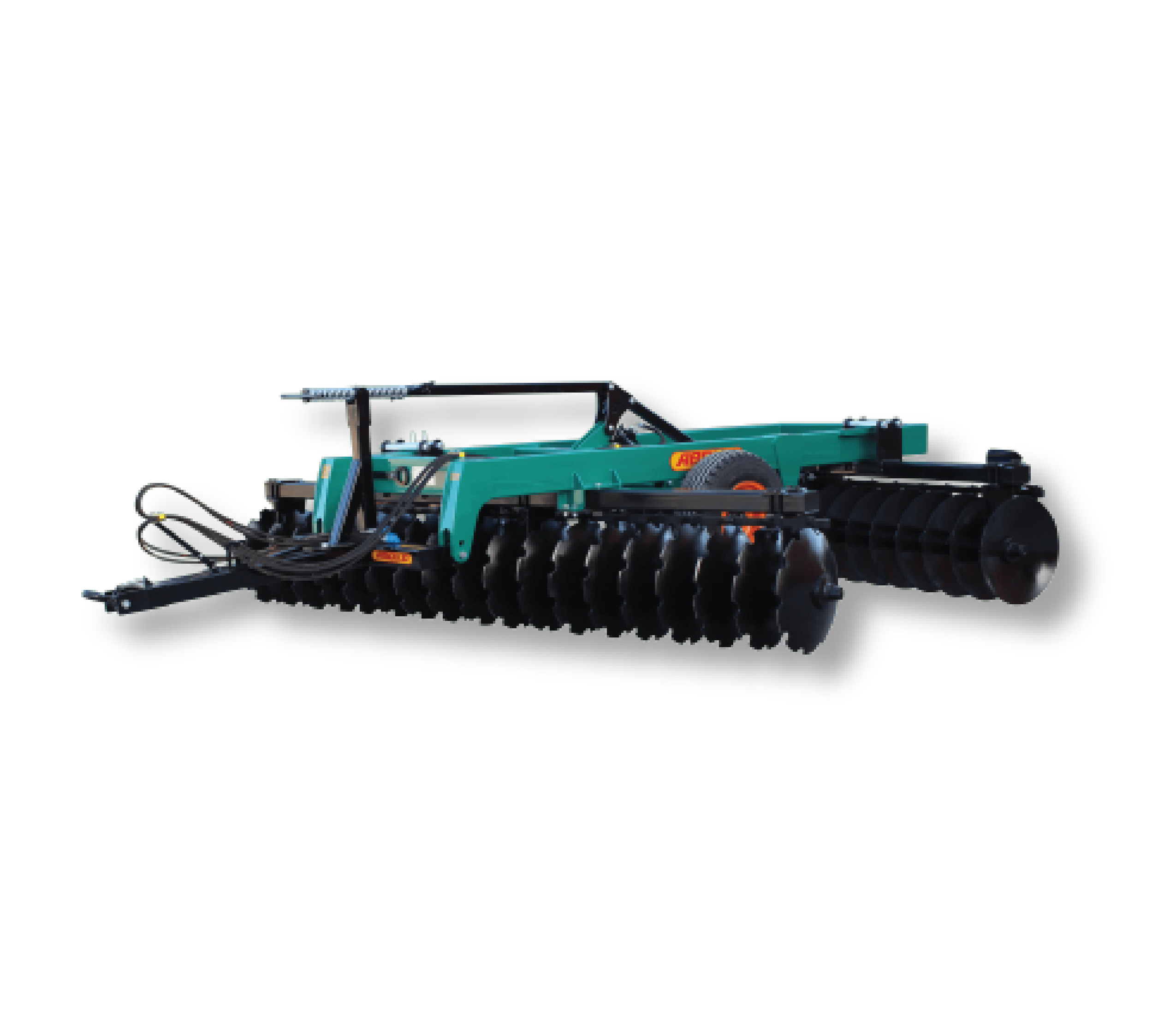

  • GOBLE DISC HARROW TY – GO SERIES: Preparing the soil for planting plows the fields or directly by entering the mixing of soil processed and provides a certain depth. Breaking down plant residues remaining in the field after harvest stem and soil mixes. Plow, chisel cultivator of the field after the use of tools such as hard soil blocks or manure and soil put into small particles and parts.
  • It enables the preparation of seed beds and seedling bed.
  • It puts the shred grass weed against the disappearance of the soil mix them to dry in the soil. It mixes the organic and inorganic fertilizers into the soil which had been placed under the ground.
  • It has a width of more work than other tillage machines. However, less force is needed for tractor because the higher operating speed is much more economical than other soil processing machinery.
  • The labor and expense of maintenance of the spare parts , fuel for turning the soil by mixing it,is not much.
  • It supplies the ventilation to the soil and temperature, a good environment and rising water balance of the soil. It can be used in all kinds of soil easily and effortlessly
Categories: ,

RIDGER is mounted to the tractor through a three-point hitch system, which takes the tractor’s pulling force. It has a channel (arc) opening capability up to 80 cm wide. A total area of 6 meters, including 3 meters each going and returning,  is prepared for planting and sowing. The required working depth can be adjusted up to 30 cm depth from the wheels on both sides. It is easy to use and has 4 canals (arc) opening feature at the same time. The work width is made proportional to the width of the tractor track and the tractor wheel track doesnt damage the openned canals. It also provides time and money saving because it has been designed compatible to go and return plowing sides of field.

Model   TY-GO18 TY-GO20 TY-GO22 TY-GO24 TY-GO26 TY-GO28 TY-GO30 TY-GO32
Disc Piece Qty 18 20 22 24 26 28 30 32
Disc Diameter and Thickness cm / mm 61/5 61/5 61/5 61/5 61/5 61/5 61/5 61/5
Working Width cm 185 207 230 253 276 299 322 345
Weight Kg 1615 1715 1765 1815 1865 1915 1965 2015
Tractor Power Hp 60-70 70-80 80-90 90-100 100-110 110-120 120-130 130-140
Disc Distance cm 23 23 23 23 23 23 23 23
Number of Beds Qty 6 8 8 8 8 8 8 8
Main Frame mm 100x200x6 100x200x6 100x200x6 100x200x6 100x200x6 100x200x6 100x200x6 100x200x6
